APPLICATION:|
PROPERTIES |
|
|

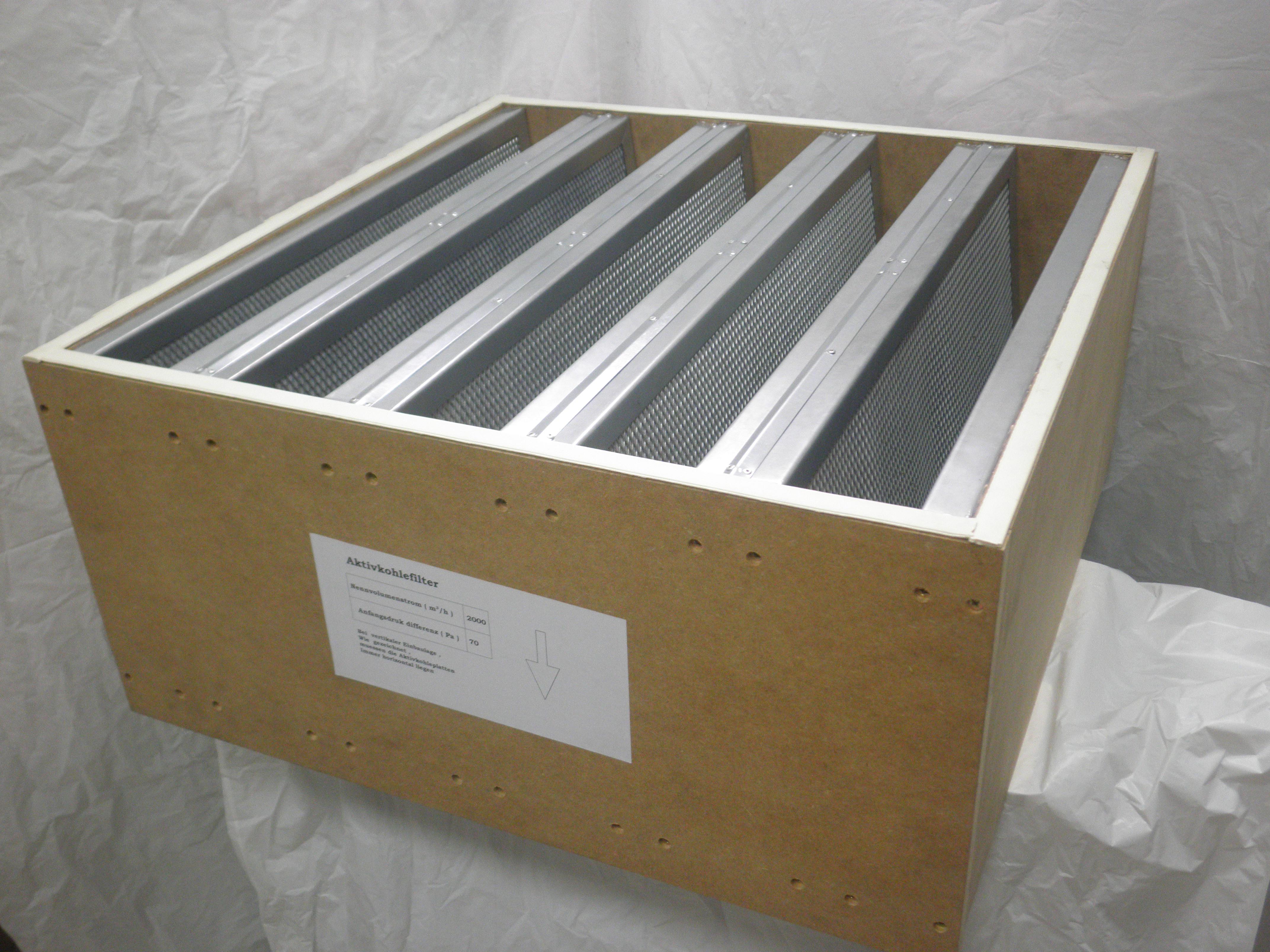

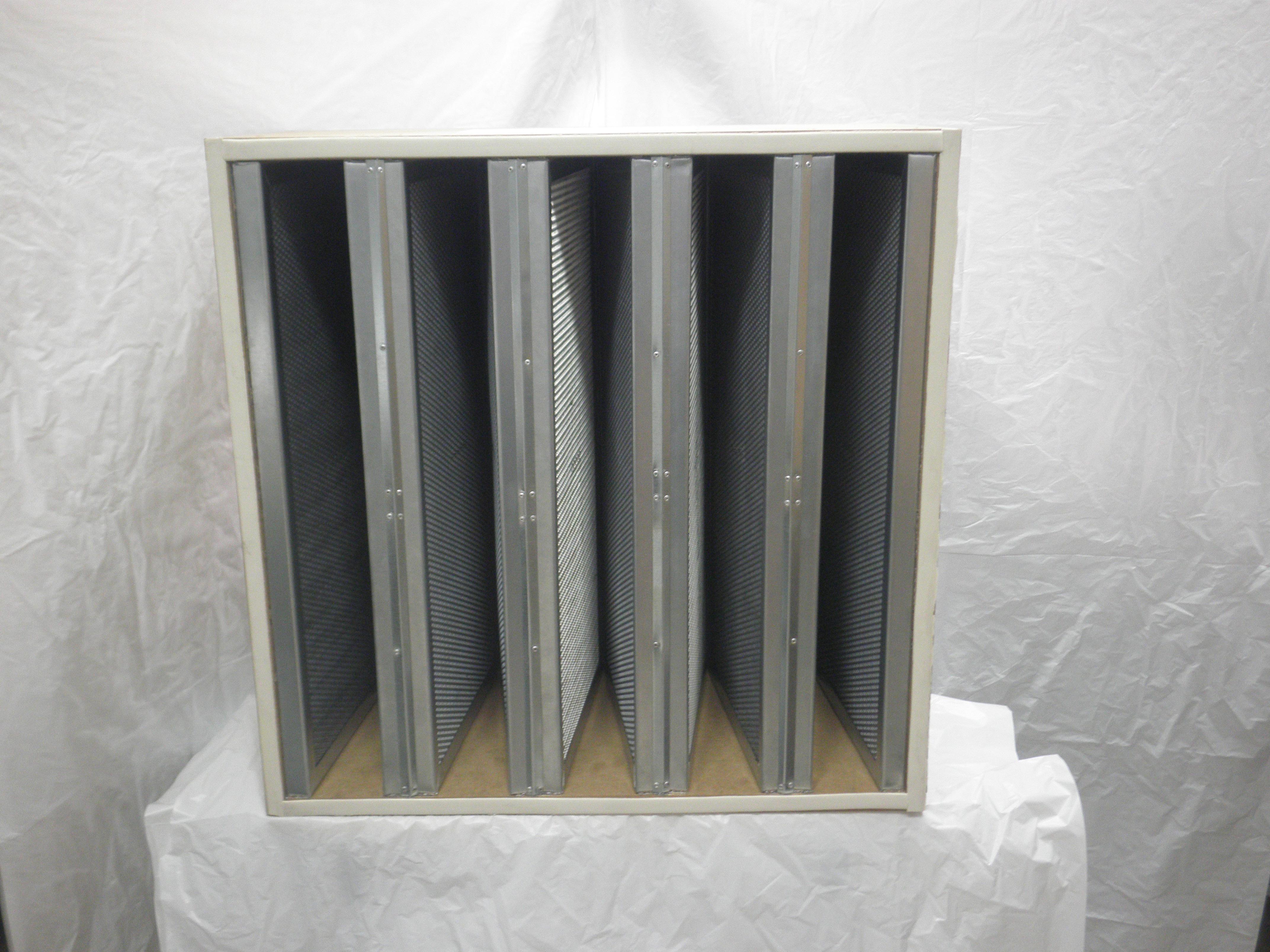

Frame |
Galvanized Metal , MDF |
|
Filtering media |
Granular Filled Activated Carbon |
|
Max. Operating Temperature |
50o C |
|
Max Relative Humudity |
70% |
|
Final Pressure Drop |
450 Pa |
|
Gas Removal Efficiency |
60% Initial Removal Efficiency when tested using toluene Other adsorbents available for chemical |
|
DIM |
Air Flow m3/h |
Initial Pressure Drop (Pa ) |
Bed Thickness |
Number of Adsorber Panel |
Weight of Carbon kg. |
|
305 x 610 x 292 |
1700 |
100 |
25 |
10 |
17 |
|
610 x 610 x 292 |
3400 |
100 |
25 |
10 |
35 |
| Properties | ||||
|
Air Flow m3/h |
500 |
1000 |
1500 |
2000 |
|
Resistance Pa |
80 |
160 |
250 |
350 |
|
Contact Time |
0,32 |
0,17 |
0,1 |
0,09 |
